RN PET S5 Handheld Pulse Oximeter Manufacturer

product details

RN PET H5 Handheld Pulse Oximeter

RN PET S5 handheld pulse oximeters play an important role in environments such as homes and pet hospitals. They can non-invasively measure blood oxygen saturation and pulse through parts of the animal such as the tongue or ear, which is essential for monitoring the respiratory and circulatory health of pets. In addition, such devices are usually small in size, light in weight, easy to carry, and simple to use. They have functions such as function menus, blood oxygen saturation numerical display, pulse rate numerical display, and pulse waveform display, as well as screen brightness adjustment and pulse rate sound indication. Some devices also have storage functions, can upload measurement data to a computer, have real-time transmission functions, and can be connected to an external blood oxygen probe, making them suitable for use at home, in veterinary hospitals, etc.

RN PET 10S Handheld Pulse Oximeter

Product advantages

Our advantages

The RN PET S5 Handheld Pulse Oximeter is designed with high-quality components and advanced technologies. It undergoes strict quality control during the production process to ensure stable performance and high reliability. Whether in a hospital ward or a home healthcare environment, it can provide accurate and continuous monitoring data.

Features:

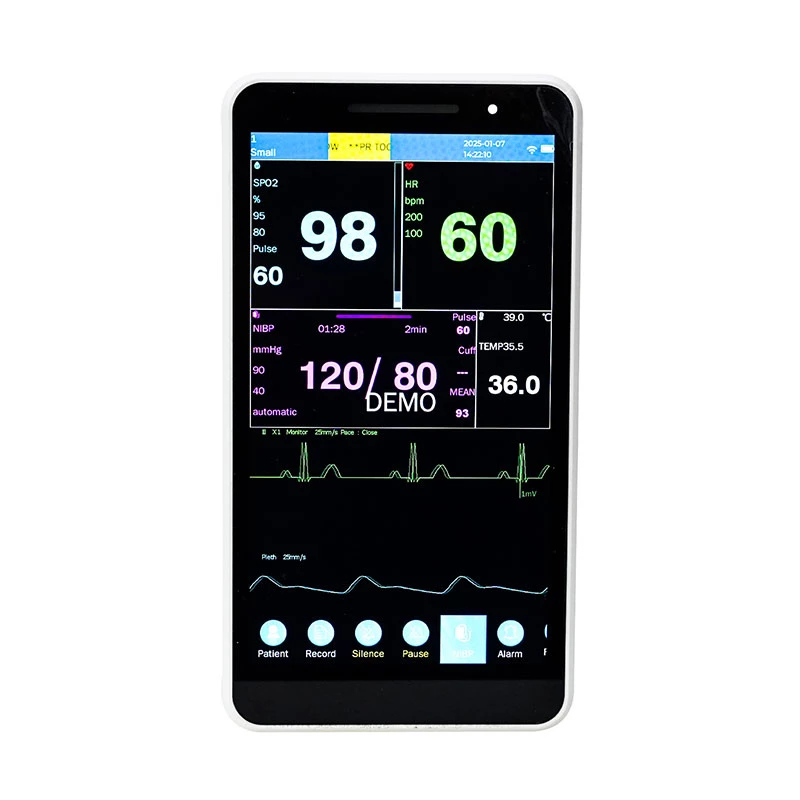

5.5inch capacitive touch screen with friend Ul design
Suitable for small and large animals
Anti-defibrillator, anti-ESU , with Titration function
Advanced blood oxygen technology, anti-motion interference
Smart system with built-in manual
Multiple configurations to choose:
WSpet H5:SPO2+NIBP+TEMP
wSpet H5S:SPO2
WSpet H5ST:SPO2+TEMP
WSpet H5N:NIBP+TEMP
WSpet H5P:SPO2+NIBP+ECG+TEMP

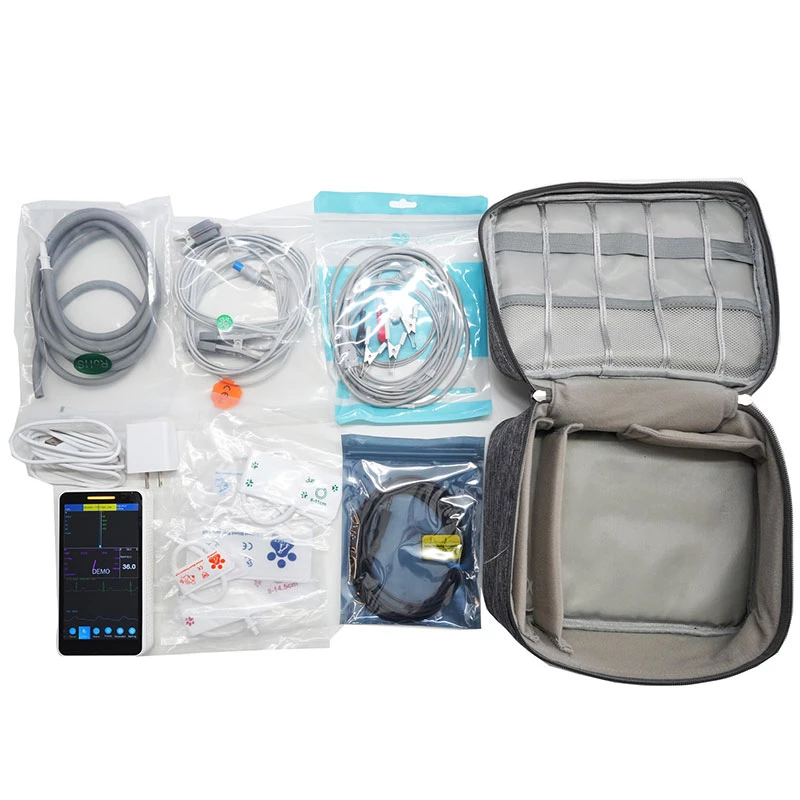

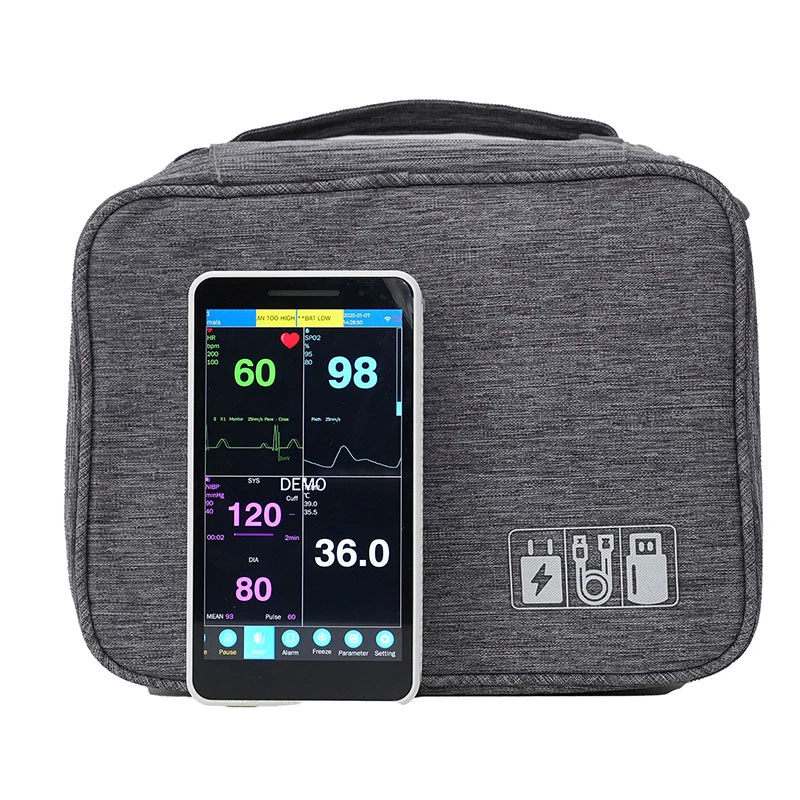

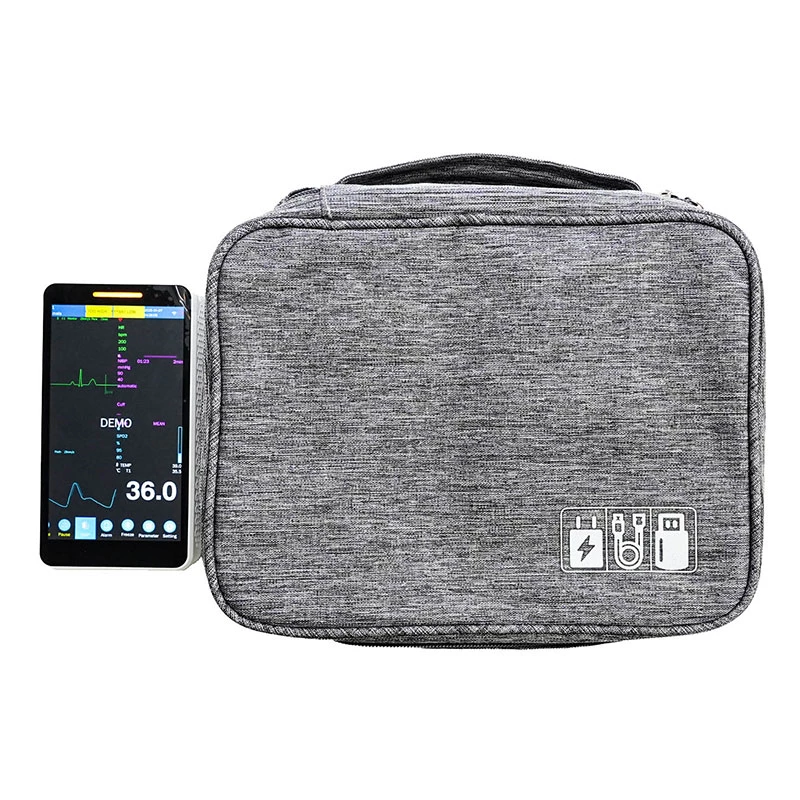

Optional: Wifi , wireless printer, Etco2 , carry bag
Remote data transfer available, supporting to lOS/Android system (App)
Rechargeable lion-battery backup time more than 6 hours continuously working

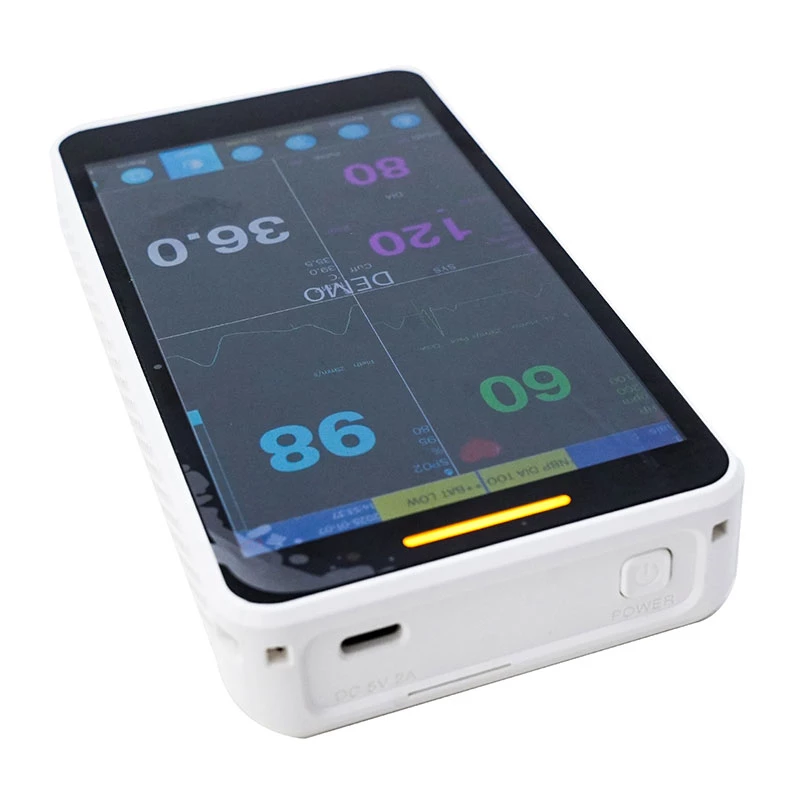

Ultra-thin design, lightweight,compact easy to carry

Technology specifications

Product name	RN PET S5
Temperature	Technique: Thermistor probe (2.25K/10k);
	Measuring and Alarm Range: 0.0℃~50℃;
	Unit: Celsius (℃);
	Resolution: 0.1℃ or 1F;
	Accuracy: ±0.1℃ (exclusive probe);
Pulse Rate	Measuring and Alarm Range: 25~250bpm；
	Accuracy: ±3bpm；
	Resolution: 1bpm；
ECG	Lead mode: 3 Leads I,II,III;
	Gain: 1/4 file (X0.25) 2.5mm/mV; 1/2 file (X0.50) 5.0mm/mV; 1 file (X1) 10mm/mV; 2 files (X2) 20mm/mV;
	Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s;
	Baseline Recovery: < 3s after defibrillation (Monitor mode), < 1s after defibrillation (Surgery mode);
	Bandwidth: Diagnostic 0.05~100, Monitor 0.5~40Hz, Surgery 1~20Hz;
NIBP	Method: Pulse wave oscillation method;
	Measure mode: Manual, Auto, Continue;
	Measure interval in auto mode: 1 file (X1) 10mm/mV; 2 files (X2) 20mm/mV; 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480min;
	STAT mode cycle time: Keep 5 minutes;
	Measure and Alarm Range: Large Animal: SYS 30~280mmHg DIA 10~220mmHg MEAN 20~240mmHg, Small Animal: SYS 30~220mmHg DIA 10~160mmHg MEAN 20~170mmHg, Static pressure range: 0~300mmHg, Static pressure accuracy: 3mmHg;
	Maximum Mean error: 5mmHg;
	Maximum Standard deviation: 8mmHg;
	Static pressure accuracy: ±3mmHg;
	Resolution: 1mmHg;
	Accuracy: Maximum Mean error ± 5mmHg, Maximum Standard deviation<8mmHg;
	Over pressure Protection: Large animal~300mmHg, Small animal~240mmHg;
Heart Rate	Measure range: Large animal 15~300 bpm, Small animal 15~350 bpm;
	Accuracy: 1% or 1bpm, whichever is greater;
	Resolution: 1 bpm;
SpO2	Measurement Range: 0~100%;
	Resolution: 1%;
	Response Modes: Low, Medium, High;
	Accuracy: 70%~100%: 2% <69%: unspecified;
EtCO2	Measure method: Non-dispersive infrared (NDIR);
	Measure Range: 0~19.7% (0~150mmHg) 0~20kPa;
	Resolution: 0.1 mmHg;
	CO2 Accuracy: 0~40 mmHg, ±2 mmHg, 41~70 mmHg, ±5% of reading, 71~100 mmHg, ±8% of reading, 101~150 mmHg, ±10% of reading, at 760mmHg, ambient temperature of 25℃);
	Respiratory Rate: Range:3-150BrPM, Accuracy:±1bpm;
Transportation and Storage	Temperature: -20~50℃;
	Humidity: 10%~90%(non-condensing);
	Atmosphere pressure: 86KPa~106KPa;
Respiration	Method:lmpedance between RA-LL;
	Gain: x0.25, x0.50, x1, x2, x4;
	Respiration Rate:0~120/0-150BrPM;
	Sweep speed: 6.25 mm/s,12.5 mm/s,25mm/s;
	Resolution:1 BrPM;
	Apnea Alarm:10~40s;
	Measure range: Large animal: 0-120 bpm;
	Small animal:0-150 bpm;
Trend & Reviewing	NlBP measurement reviewing: 1500groups;
	Waveform review: 3 hours 600groups;
	Alarm event: 1000 groups of parameter alarms events and associated parameter;

Usage scenario

RN PET 10S Handheld Pulse Oximeter

Hospital Wards

In pet hospitals, the RN PET S5 handheld pulse oximeter is used to continuously monitor the pet's electrocardiogram, blood pressure, blood oxygen, respiration, pulse, body temperature, and other vital signs, providing accurate and real-time data to help medical staff promptly detect changes in the pet's condition and make timely treatment decisions. It also supports seamless connection with the hospital's information system and promotes the integration and management of animal data within the hospital.

RN PET 10S Handheld Pulse Oximeter

Home Healthcare

The RN PET S5 handheld pulse oximeter is a convenient choice for home healthcare. It allows owners to monitor their pets’ health at home. With features such as advanced blood oxygen technology that works well even in-home use scenarios, and the ability to perform respiratory measurements through the pulse wave method to save consumable accessories, it provides a cost-effective and user-friendly solution. The IoT information transmission function enables remote monitoring, ensuring that owners can still monitor their pets’ health when they are not at home.

RN PET 10S Handheld Pulse Oximeter

Emergency Rescue

In emergency rescue situations, the RN PET S5 handheld pulse oximeter can be deployed quickly. Its high performance and reliable monitoring capabilities are essential. For example, in an ambulance or at an accident scene, it can quickly measure and display key physiological parameters of animals. The wireless connectivity function allows monitoring data to be easily transmitted to the receiving hospital in advance so that the hospital can better prepare for treatment.

Professional manufacturer

Wuhan Uryn Medical Technology Co., LTD., is a collection of R&D, production, and sales of patient monitor, remoting patient monitor, vital sign monitor, handheld pulse oximeter, electrocardiogram machines. We are also provide SKD and OEM service. we are the main body of the high-tech professional technology company.
