RN 8003V+ ECG Machine Supplier, Wholesale ECG Machine Factory

product details

The RN 8003V+ Veterinary Electrocardiograph is a device that integrates fully digital components and a high-resolution thermal printer to provide perfect ECG waveforms. The machine uses high-quality components and advanced technology, and undergoes strict quality control during the production process to ensure its stable performance and high reliability. Whether in a pet ward or a home monitoring environment, the RN 8003V+ Veterinary Electrocardiograph can provide accurate and continuous monitoring data to meet the heart monitoring needs of pets in different environments.

RN 8003V+ Veterinary Electrocardiograph

Product advantages

Our advantages

First choice for physical examination center, Full digital filter, High-Resolution Thermal Printer, Perfect ECG wave. The RN 8003V+ Veterinary Electrocardiograph is designed with high-quality components and advanced technologies. It undergoes strict quality control during the production process to ensure stable performance and high reliability. Whether in a hospital ward or a home healthcare environment, it can provide accurate and continuous monitoring data.

Features:

Compact in size and ergonomic design, very easy to operate, portable.
80mm, three channel format recording with interpretation; Recording format: 1ch+V, 3ch, 3ch+V. Three working modes: Auto, Manual and Arrhythmia Analysis.
High accuracy digital filter; Automatic baseline adjustment.
7 leads simultaneously collection and display.
480x272 graphic 7 inch color LCD displays detailed ECG information.
100 cases of ECG can be stored and displayed.
Adapt to 110 - 230V, 50 / 60Hz power supply.
Rechargeable Ni - MH battery supports continuous work over 3 hours.

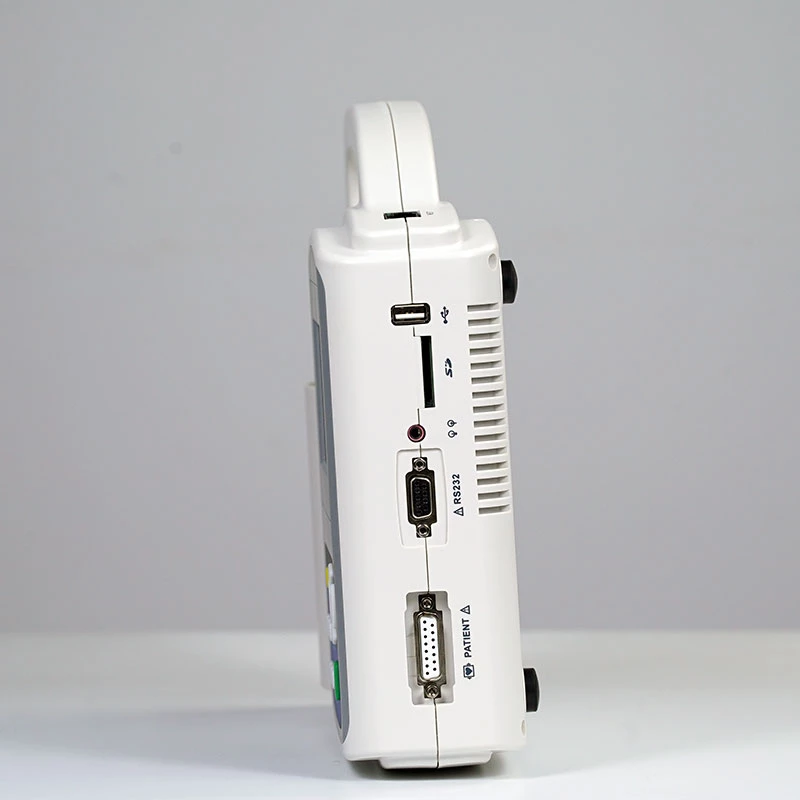

With RS232 and USB communication interface, optional for connection to laser.
PC ECG Management software is optional.

Technology specifications

Index	Parameters	Index	Parameters
Lead	Standard 7 leads	Voltage tolerance	</=±500mV
Lead acquisition	24bit/1000Hz(synchronously 7 leads)	Time constant	</=3.2s
Work mode	Auto, Auto 2, Man, Analysis	Frequency response	0.05~150Hz(-3db)
Filter	AC Filter:50Hz/60Hz	Noise level	<15μVp-p
CMMR Input circuit	EMG Filter: 35Hz/45HZ	Inter-channel interference	</=0.5mm
	Anti-Drift Filter: 0.15Hz(Adaptive)	Sensitivity	Auto, 2.5, 5, 10, 20 mm/mV
	>/=100dB(with AC Filter)	Recording mode	1ch+V, 3ch, 3ch+V
	Floating , Protection circuit against	Paper speed	5, 10, 12.5, 25, 50mm/s(± 3%)
	Defibrillator effect	Paper	80mmx20m roll paper
Input impedance	>/= 50M Ω	Communication	Rs232/USB port
Input circuit current	</= 0.05μA	Power supply	AC-110-230V,50/60Hz
Patient currentleakage	<10μA	Power supply	DC: Rechargeable Ni-MH battery
Calibrating voltage	1mV±2%	Dimension and Weight	310mmx260mmx85mm, 1.4kgs

Standard Package

Index	Parameters	Index	Parameters
Main Unit	1 unit	Thermal printing paper	1 rollor
Veterinary patient cable with electrodes	1 pc	PC software	1 pc
Paper axis	1 pc	Power cord	1 pc

Usage scenario

RN 8003V+ Veterinary Electrocardiograph

Hospital Wards

RN 8003V+ Veterinary Electrocardiograph monitors the heart condition of pets: During surgery, monitoring and emergency treatment, use the electrocardiograph to monitor the heart activity of pets in real time to detect abnormalities in time. Evaluate the effect of pet heart surgery: After heart surgery, use the electrocardiograph to evaluate the effect of the surgery and monitor the recovery of the pet.

Veterinary Electrocardiograph

Home Healthcare

The RN 8003V+ Veterinary Electrocardiograph can be connected to a mobile device or cloud service for remote monitoring, allowing pet owners and veterinarians to keep track of their pet’s heart condition. The RN 8003V+ Veterinary Electrocardiograph can record and store the pet’s ECG data, facilitating long-term tracking and analysis of the pet’s heart health trends.

Veterinary Electrocardiograph

Emergency Rescue

Designed to be lightweight and portable, the RN 8003V+ Veterinary Electrocardiograph is designed to be used outdoors or in animal enclosures. It can monitor the electrical activity of the heart in real time in the animal's natural environment, providing continuous, dynamic data. This is especially important for pets in outdoor environments, as it can monitor their heart health while they go about their daily activities.

Professional manufacturer

Wuhan Uryn Medical Technology Co., LTD., is a collection of R&D, production, and sales of patient monitor, remoting patient monitor, vital sign monitor, handheld pulse oximeter, electrocardiogram machines. We are also provide SKD and OEM service. we are the main body of the high-tech professional technology company.

Veterinary Electrocardiograph manufacturer

Our certificates

Veterinary Electrocardiograph manufacturer

Our Cooperative Customers

Veterinary Electrocardiograph manufacturer

Frequently asked questions

Q1.Does it support OEM startup LOGO?

A:Yes. The startup LOGO can be customized according to customer needs.

Q2.Does the language support Russian?

A:Currently no, but can be customized.

Q3.Can I customize the suitcase?

A:Yes, we have matching suitcases. We can also customize it for you if necessary.

Q4.Can it be automatically interpreted to get the result?

A:Sure, Selectable Auto and Manual Mode.

Q5.How long is the warranty period?

A:1 year for host and 6 months for accessories. We can provide extended warranty service, and the supply of accessories is guaranteed for at least 5 years.
