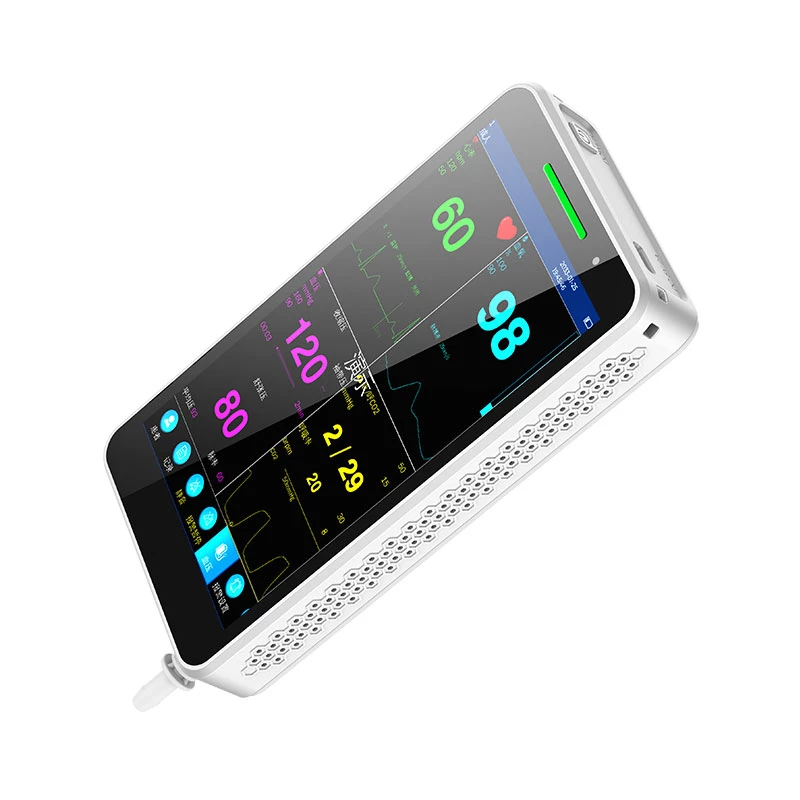

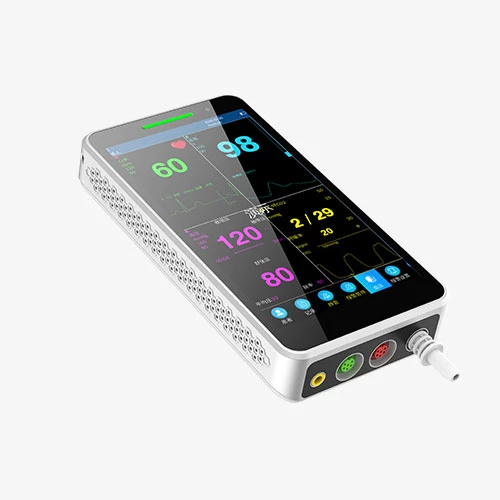

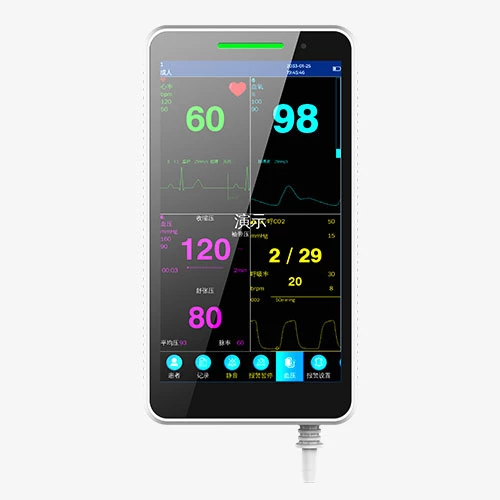

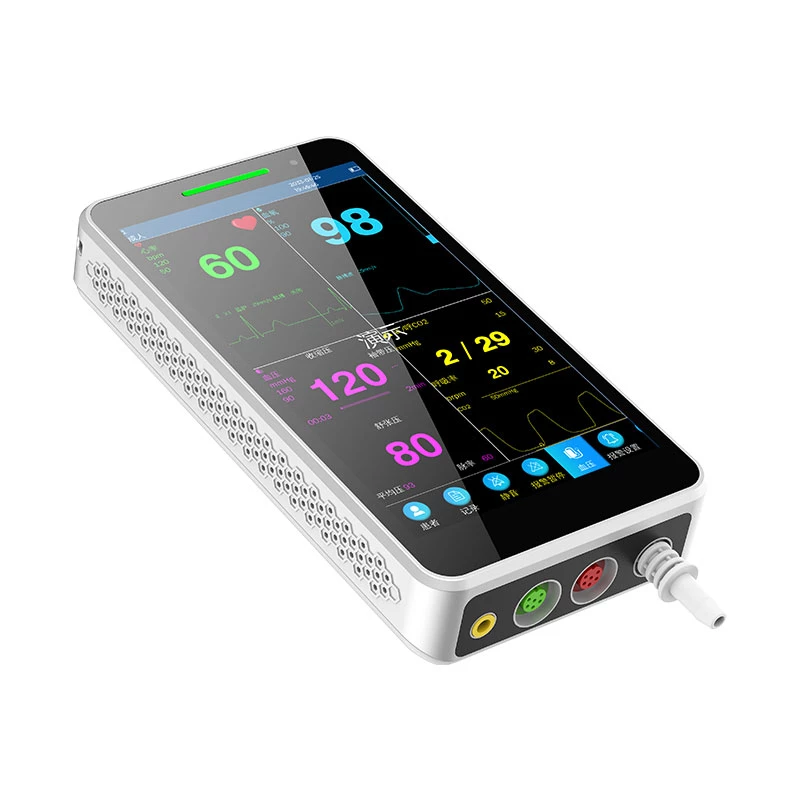

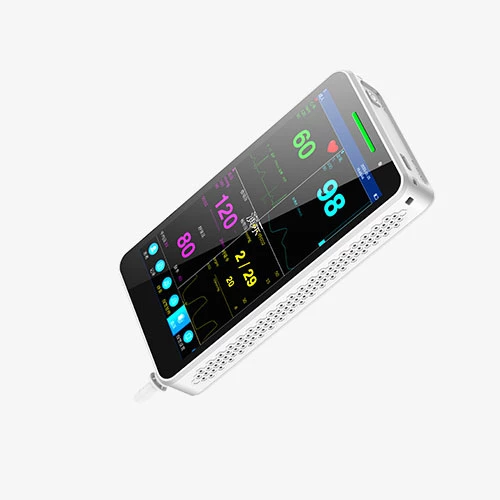

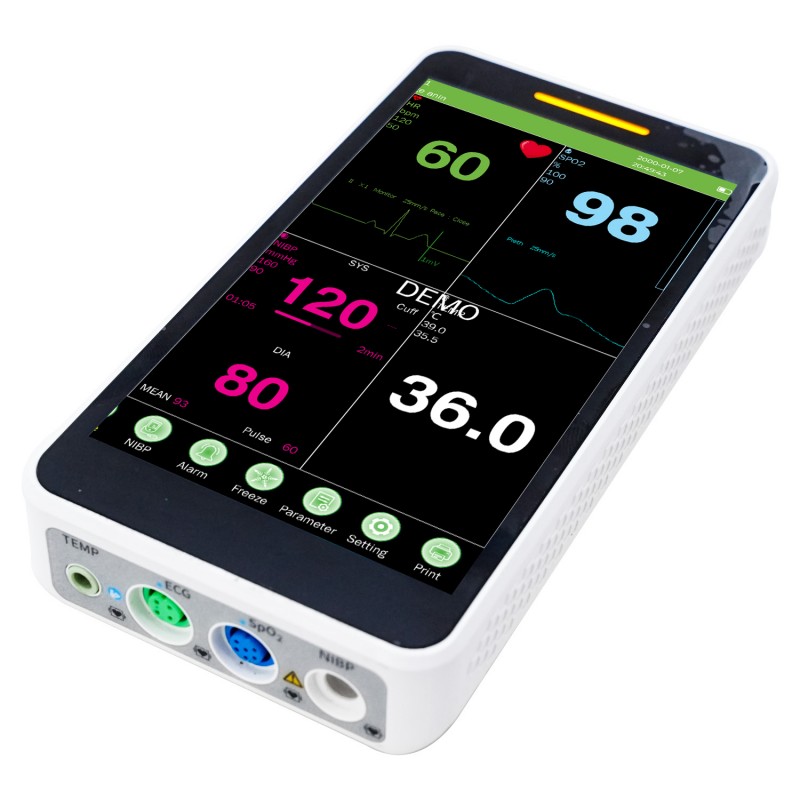

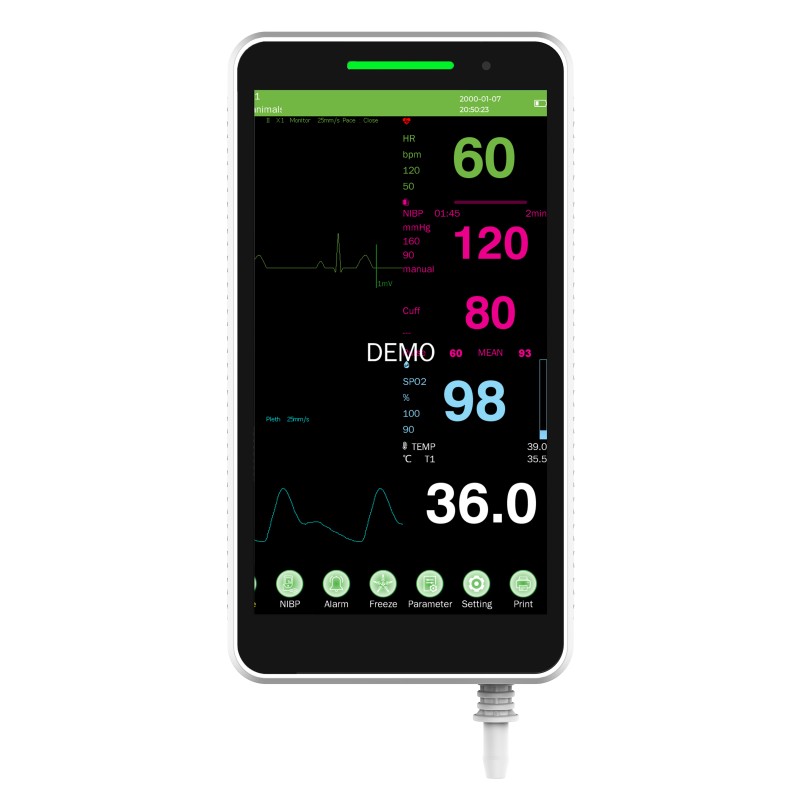

Custom Wholesale RN S5 Remote Handheld Telemetry Patient Monitor

product details

The RN S5 handheld telemetry patient monitor has many advantages that make it widely used in the medical field. First of all, this type of device is small and light, easy to carry and operate, allowing medical workers to conveniently perform mobile monitoring in various scenarios without being restricted by time and place. This portability is particularly suitable for scenarios such as pre-hospital emergency, emergency, respiratory, surgery, ICU, and neonatology. It can quickly and accurately obtain the patient's vital signs data, provide a decision-making basis for emergency personnel, and improve the success rate of rescue.

RN S5 Smart Monitors

Product advantages

Our advantages

The RN S5 Handheld Telemetry Patient Monitor is designed with high-quality components and advanced technologies. It undergoes strict quality control during the production process to ensure stable performance and high reliability. Whether in a hospital ward or a home healthcare environment, it can provide accurate and continuous monitoring data.

Features:

5.5inch capacitive touch screen with friend UI design
Various interface options through multi-gesture control
Anti-defibrillator, anti-ESU, with Titration function
Application for adult, pediatric and neonate
Advanced blood oxygen technology, anti-motion interference
Smart system with built-in manual
Multiple configurations to choose:

WS H5:SPO2+NIBP+TEMP
WS H5S:SPO2
WS H5ST:SPO2+TEMP
WS H5N:NIBP+TEMP
WS H5P:SPO2+NIBP+ECG+TEMP

Optional: Wifi, wireless printer, Etco2, carry bag
Remote data transfer available, supporting to IOS/Android system (App)
Rechargeable lion-battery backup time more than 6 hours continuously working
Ultra-thin design, lightweight, compact easy to carry

Technology specifications

Product name	RN S5
ECG	Lead mode: 3 Leads, I, II, III;
	Gain: 1/4 file (X0.25) 2.5 mm/mV; 1/2 file ( X0.50) 5.0 mm/mV; 1 file (X1) 10 mm/mV; 2 files (X2) 20 mm/mV;
	Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s;
	Baseline Recovery: ≤ 3s after defibrillation (Monitor mode), ≤ 1s after defibrillation (Surgery mode);
	Bandwidth: Diagnostic 0.05 ~ 100, Monitor 0.5 ~ 40 Hz, Surgery 1 ~ 20 Hz;
Heart Rate	Adult: 15 ~ 300 bpm;
	Neonatal/Pediatric: 15 ~ 350 bpm;
	accuracy 1% or 1bpm, whichever is greater;
	resolution 1 bpm;
Temperature	Technique: Thermistor probe (2.25K / 10k);
	Measuring and Alarm Range: 0.0 ℃~ 50 ℃;
	Unit: Celsius (℃);
	Resolution: 0.1℃ or 1℉;
	Accuracy: ±0.1℃(exclusive probe);
NIBP	Method: Pulse wave oscillation method;
	Measure mode: Manual, Auto, Continue;
	Measure interval in auto mode:1,2,3,4,5,10,15,30,60,90,120,180,240,480 min;
	STAT mode cycle time: Keep 5 minutes;
	Adult Mode: SYS 40 ~ 280mmHg, DIA 10 ~ 220mmHg-M, EAN 20 ~ 240mmHg;
	Pediatric Mod: SYS 40 ~ 220mmHg, DIA 10 ~ 160mmHg, MEAN 20 ~ 170mmHg;
	Static pressure range: 0～300mmHg;
	Static pressure accuracy: 3mmHg;
	Accuracy: Maximum Mean error 5mmHg;
	Maximum Standard deviation 8mmHg;
	Static pressure accuracy: ±3mmHg;
	Resolution: 1mmHg;
	Accuracy: Maximum Mean error ±5mmHg, Maximum Standard deviation ≤8mmHg;
	Over pressure Protection: Adult - 300mmHg, Pediatric - 240mmHg;
SpO2	Measurement Range: 0~100%;
	Resolution: 1%;
	Response Modes: Low, Medium, High;
	Accuracy: 70%~100%: 2%<69%: unspecified;
	Support Pitch tone and multi-level volume;
	PI performance: 0.20%;
Pulse Rate	Measuring and Alarm Range: 25~250bpm;
	Accuracy: ± 3bpm;
	Resolution: 1bpm;
EtCO2	Measure method: Non-dispersive infrared (NDIR);
	Measure Range: 0~19.7% (0~150mmHg), 0~20kPa;
	Resolution: 0.1mmHg;
	CO2 Accuracy: 0~40 mmHg, ± 2 mmHg, 41~70 mmHg, ± 5% of reading, 71~100 mmHg, ± 8% of reading, 101~150 mmHg, ± 10% of reading, at 760mmHg, ambient temperature of 25℃);
	Respiratory Rate: Range: 3~150BrPM, Accuracy: ± 1bpm;

Usage scenario

RN S5 Smart Monitors

Hospital Wards

The RN S5 handheld telemetry patient monitor has powerful data transmission and sharing functions. By connecting to computers and other devices, it can achieve real-time transmission and storage of monitoring data, making it convenient for medical workers to perform data analysis, diagnosis, and decision-making. In addition, the handheld vital signs monitor also incorporates intelligent functions such as data analysis and early warning, which can automatically analyze monitoring data, detect abnormal conditions, and issue early warning prompts promptly.

RN S5 Smart Monitors

Home Healthcare

For home healthcare, the RN S5 Handheld Telemetry Patient Monitor is a convenient choice. It allows patients to monitor their health conditions at home. With features like advanced blood oxygen technology that can work well even in home-use scenarios, and the ability to save consumable accessories through the pulse-wave method for respiration measurement, it provides a cost-effective and user-friendly solution. The IoT information transmission function enables remote monitoring by healthcare providers, ensuring that patients can still receive professional medical care guidance at home.

RN S5 Smart Monitors

Emergency Rescue

During emergency rescue situations, the RN S5 Handheld Telemetry Patient Monitor can be quickly deployed. Its high performance and reliable monitoring capabilities are crucial. For example, in ambulances or at the scene of accidents, it can rapidly measure and display patients' key physiological parameters. The wireless connectivity feature allows for easy transfer of the monitored data to the receiving hospital in advance so that the hospital can make better preparations for treatment.

Professional manufacturer

Wuhan Uryn Medical Technology Co., LTD., is a collection of R&D, production, and sales of patient monitor, remoting patient monitor, vital sign monitor, handheld pulse oximeter, electrocardiogram machines. We are also provide SKD and OEM service. we are the main body of the high-tech professional technology company.
