RN8003+ ECG Machine Supplier, Wholesale ECG Machine Factory

product details

The RN8003+ ECG machine is a device that integrates all digital components and a high-resolution thermal printer to provide perfect ECG waveforms. The machine uses high-quality components and advanced technology and undergoes strict quality control during the production process to ensure its stable performance and high reliability. Whether in a hospital ward or a home medical environment, the RN8003+ ECG machine can provide accurate and continuous monitoring data to meet the heart monitoring needs of different occasions.

RN8003+ ECG Machine

Product advantages

Our advantages

First choice for physical examination center, Full digital filter, High-Resolution Thermal Printer, Perfect ECG wave. The RN8003+ ECG Machine is designed with high-quality components and advanced technologies. It undergoes strict quality control during the production process to ensure stable performance and high reliability. Whether in a hospital ward or a home healthcare environment, it can provide accurate and continuous monitoring data.

Features:

Compact in size and ergonomic design, very easy to operate, portable.
80mm, three channel format recording with interpretation; Recording format: 1ch+V, 3ch, 3ch+V. Three working modes: Auto, Manual and Arrhythmia Analysis.
High accuracy digital filter; Automatic baseline adjustment.
7 leads simultaneously collection and display.
480x272 graphic 7 inch color LCD displays detailed ECG information.
100 cases of ECG can be stored and displayed.
Adapt to 110 - 230V, 50 / 60Hz power supply.
Rechargeable Ni - MH battery supports continuous work over 3 hours.

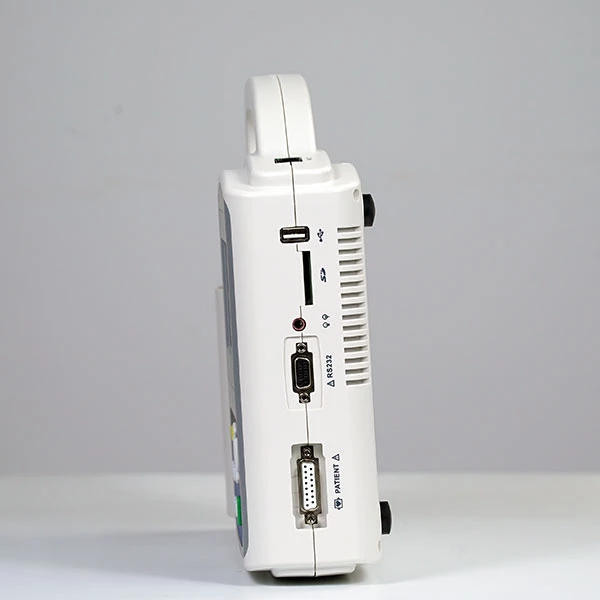

With RS232 and USB communication interface, optional for connection to laser
PC ECG Management software is optional.

Technology specifications

Index	Parameters	Index	Parameters
Lead	Standard 7 leads	Voltage tolerance	</=+500mV
Lead acquisition	24bit/1000Hz(synchronously 7 leads)	Time constant	</=3.2s
Work mode	Auto, Auto 2, Man, Analysis	Frequency response	0.05~150Hz(-3db)
Filter	AC Filter:50Hz/60Hz	Noise level	<15μVp-p
CMMR Input circuit	EMG Filter: 35Hz/45HZ	Inter-channel interference	</=0.5mm
	Anti-Drift Filter: 0.15Hz(Adaptive)	Sensitivity	Auto, 2.5, 5, 10, 20 mm/mV
	>/=100dB(with AC Filter)	Recording mode	1ch+V, 3ch, 3ch+V
	Floating , Protection circuit against	Paper speed	5, 10, 12.5, 25, 50mm/s(± 3%)
	Defibrillator effect	Paper	80mmx20m roll paper
Input impedance	>/= 50M Ω	Communication	Rs232/USB port
Input circuit current	</= 0.05μA	Power supply	AC-110-230V,50/60Hz
Patient currentleakage	<10μA	Power supply	DC: Rechargeable Ni-MH battery
Calibrating voltage	1mV+2%	Dimension and Weight	310mmx260mmx85mm, 1.4kgs

Standard Package

Index	Parameters	Index	Parameters
Main Unit	1 unit	Thermal printing paper	1 rollor
Veterinary patient cable with electrodes	1 pc	PC software	1 pc
Paper axis	1 pc	Power cord	1 pc

Usage scenario

RN8003+ ECG Machine

Hospital Wards

RN8003+ ECG Machine monitors heart condition: During surgery, intensive care, and emergencies, the ECG machine is used to monitor the patient's heart activity in real time so that abnormalities can be detected in time. Evaluate the effect of heart surgery: After heart surgery, the ECG machine is used to evaluate the effect of the surgery and monitor the patient's recovery.

RN8003+ ECG Machine

Home Healthcare

RN8003+ ECG machines are playing an increasingly important role in home healthcare, especially in the context of telemedicine and home health management. Remote monitoring: For patients at risk of heart disease or who have already been diagnosed with heart problems, home ECG machines can provide remote monitoring to help doctors remotely track the patient's heart condition. Early detection: Home ECG machines can help users detect possible heart problems early, such as arrhythmias or myocardial ischemia, so that they can seek medical attention promptly.

RN8003+ ECG Machine

Emergency Rescue

RN8003+ ECG Machine plays a vital role in the first aid process. They can quickly and accurately examine and treat patients, provide clinicians with objective evidence of the patient's heart status, and quickly identify cardiac emergencies. In addition, the RN8006 ECG Machine needs to quickly and accurately examine and treat patients in first aid, and the lead wires of existing electrocardiographs are prone to intertwining and entanglement, affecting the operation effect and signal transmission, and delaying the rescue time. Therefore, the RN8003+ ECG Machine can overcome the problems of easy entanglement of lead wires, small battery capacity, and poor electrode adsorption in the existing technology, and has the advantages of easy use, easy to carry, and strong safety. In the pre-hospital emergency scenario, the electrocardiograph can be used on the 120 ambulance to help emergency personnel quickly complete the ECG examination and transmit the ECG data to the hospital in time, so that the attending doctor can make emergency preparations in advance, thereby improving the efficiency of emergency treatment.

Professional manufacturer

Wuhan Uryn Medical Technology Co., LTD., is a collection of R&D, production, and sales of patient monitor, remoting patient monitor, vital sign monitor, handheld pulse oximeter, electrocardiogram machines. We are also provide SKD and OEM service. we are the main body of the high-tech professional technology company.

RN8003+ ECG Machine Supplier

Our certificates

Our Cooperative Customers

RN8003+ ECG Machine Supplier

Frequently asked questions

Q1.Does the ECG Machine RN8003+/RN8006+/RN8012+ support OEM startup LOGO?

A:Yes. The startup LOGO can be customized according to customer needs.

Q2.Does the ECG Machine RN8003+/RN8006+/RN8012+ support multi-languages?

A:Yes.

Q3.Can the ECG Machine RN8003+/RN8006+/RN8012+ customize the suitcase?

A:Yes, we have matching suitcases. We can also customize it for you if necessary.

Q4.Can the ECG Machine RN8003+/RN8006+/RN8012+ use cardiac electrodes?

A:Yes, usually with chest electrode suction balls and limb electrode clips. If you want to use cardiac electrodes, the ECG lead wire needs to be replaced.

Q5.How long the ECG Machine RN8003+/RN8006+/RN8012+ is the warranty period?

A:1 year for host and 6 months for accessories. We can provide extended warranty service, and the supply of accessories is guaranteed for at least 5 years.
