Wholesale RN8006+ ECG Machine Supplier, Custom ECG Machine Manufacturer

product details

RN8006+ 6-channel ECG Machine First choice for physical examination center, Full digital filter, High Resolution Thermal Printer, Perfect ECG wave, The RN8006+ ECG Machine is designed with high-quality components and advanced technologies. It undergoes strict quality control during the production process to ensure stable performance and high reliability. Whether in a hospital ward or a home healthcare environment, it can provide accurate and continuous monitoring data.

RN8006+ ECG Machine

Product advantages

Our advantages

The first choice for a physical examination center is a full digital filter, a high-resolution thermal printer, and a perfect ECG wave. The RN8006+ ECG Machine is designed with high-quality components and advanced technologies. It undergoes strict quality control during the production process to ensure stable performance and high reliability. It can provide accurate and continuous monitoring data in a hospital ward or a home healthcare environment.

Features:

Complete digital design, High Resolution Thermal Printer.
It collects 12 leads and records 6 ECG waveform details simultaneously, automatically generating a complete waveform analysis report.
Full digital filter, perfect ECG wave.
Manual/Auto working Modes.
Color 7 inch touch screen, display ECG wave and friendly menu setting.
AC.EMG interference avoiding baseline drift.
AC/DC power supply; Built-in rechargeable lithium battery supports up to 3 hours of uninterrupted operation without AC power.
Slight key, support touch-screen input, single button operation.
Standard output/input interface, flexible output print pattern: three channel, three channel and rhythm lead.
Support continuous 60 seconds of waveform in selected lead, automatically analyze and revive the waveform, useful to diagnose arrhythmia.
Support lead-fail detector.
Data storage & transmission

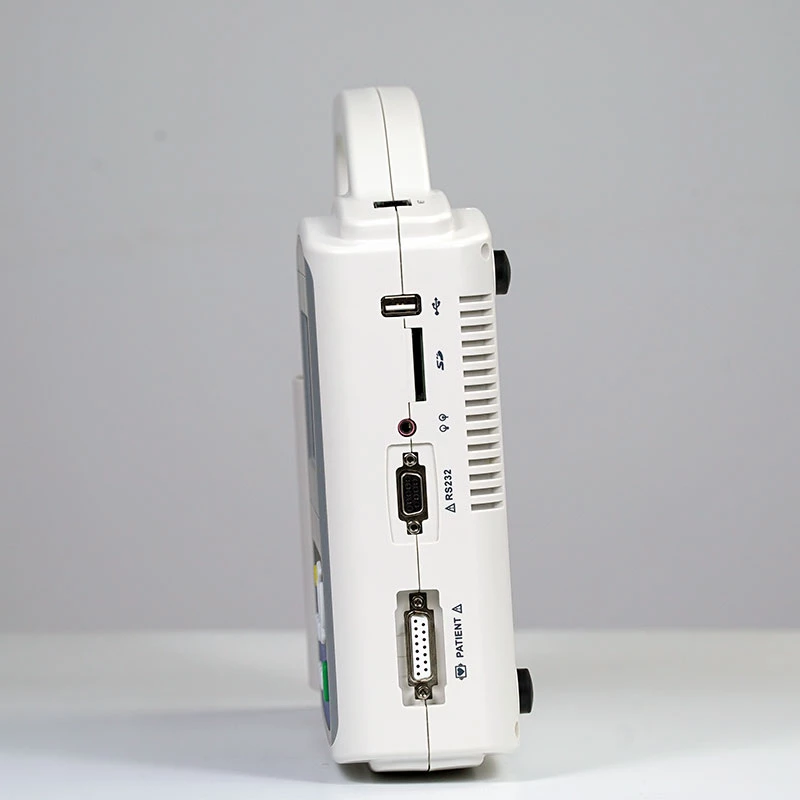

SD card, USB printer interface, Support communicate with PC via RS232 and Ethernet

Technology specifications

Index	Parameters	Index	Parameters
Acquisition mode	Simultaneously 12 Leads Acquisition	Rhythm lead	optional
Input	Isolated input, defibrillation-Proof test, Pace-maker pulse detect & suppression	Operation mode	auto or manual mode
Input impedance	≥50MΩ(10Hz)	Frequency response	0.05-150Hz(-3dB)
Input circuit current	≤50nA	Record speed	6.25/12.5/ 25/50mm/s
Gain	2.5/10/20mm/mV	Record paper	80mm*20m stock form or fanfold
Filter	AC Filter50/60Hz(-20dB) EMG Filter35/45Hz(-3dB)	Sampling rate	1000Hz, Simultaneously 12 Leads Acquisition
Electrode offset potential	±400mV	A/D Resolution	24 bit
CMRRI	≥100dB	Display	7” high-resolution color screen, Multi-language support, colored waveform display
Calibration Signal	1mV±2%	Analyse function	Chinese/English analysis report
Time constant	3.2s(0,+20% )	External input	10mm/V±5%; ≥100KΩ
Noise	≤15μVp-P	ECG output	1V/mV±5%; ≤100Ω
Baseline control	Auto	Safety class	Class I /CF
Record system	High Resolution Thermal Printer, Multi-language display and print	Capability of patients’ information	More than 100 patients records

Usage scenario

RN8006+ ECG Machine

Hospital Wards

RN8006+ ECG Machine monitors heart condition: During surgery, intensive care, and emergencies, the ECG machine is used to monitor the patient's heart activity in real time so that abnormalities can be detected in time. Evaluate the effect of heart surgery: After heart surgery, the ECG machine is used to evaluate the effect of the surgery and monitor the patient's recovery.

RN8006+ ECG Machine

Home Healthcare

RN8006+ ECG machines are playing an increasingly important role in home healthcare, especially in the context of telemedicine and home health management. Remote monitoring: For patients at risk of heart disease or who have already been diagnosed with heart problems, home ECG machines can provide remote monitoring to help doctors remotely track the patient's heart condition. Early detection: Home ECG machines can help users detect possible heart problems early, such as arrhythmias or myocardial ischemia, so that they can seek medical attention promptly.

RN8006+ ECG Machine

Emergency Rescue

RN8006+ ECG Machine plays a vital role in the first aid process. They can quickly and accurately examine and treat patients, provide clinicians with objective evidence of the patient's heart status, and quickly identify cardiac emergencies. In addition, the RN8006+ ECG Machine needs to quickly and accurately examine and treat patients in first aid, and the lead wires of existing electrocardiographs are prone to intertwining and entanglement, affecting the operation effect and signal transmission, and delaying the rescue time. Therefore, the RN8006+ ECG Machine can overcome the problems of easy entanglement of lead wires, small battery capacity, and poor electrode adsorption in the existing technology, and has the advantages of easy use, easy to carry, and strong safety. In the pre-hospital emergency scenario, the electrocardiograph can be used on the 120 ambulance to help emergency personnel quickly complete the ECG examination and transmit the ECG data to the hospital in time, so that the attending doctor can make emergency preparations in advance, thereby improving the efficiency of emergency treatment.

Professional manufacturer

Wuhan Uryn Medical Technology Co., LTD., is a collection of R&D, production, and sales of patient monitor, remoting patient monitor, vital sign monitor, handheld pulse oximeter, electrocardiogram machines. We are also provide SKD and OEM service. we are the main body of the high-tech professional technology company.

RN8006+ ECG Machine Supplier

Our certificates

Our Cooperative Customers

RN8006+ ECG Machine Supplier

Frequently asked questions

Q1.Does the ECG Machine RN8003+/RN8006+/RN8012+ support OEM startup LOGO?

A:Yes. The startup LOGO can be customized according to customer needs.

Q2.Does the ECG Machine RN8003+/RN8006+/RN8012+ support multi-languages?

A:Yes.

Q3.Can the ECG Machine RN8003+/RN8006+/RN8012+ customize the suitcase?

A:Yes, we have matching suitcases. We can also customize it for you if necessary.

Q4.Can the ECG Machine RN8003+/RN8006+/RN8012+ use cardiac electrodes?

A:Yes, usually with chest electrode suction balls and limb electrode clips. If you want to use cardiac electrodes, the ECG lead wire needs to be replaced.

Q5.How long the ECG Machine RN8003+/RN8006+/RN8012+ is the warranty period?

A:1 year for host and 6 months for accessories. We can provide extended warranty service, and the supply of accessories is guaranteed for at least 5 years.
