Custom Wholesale Vital Sign Monitor Manufacturer

product details

The Vital Sign Monitor is designed with high-quality components and advanced technologies. It undergoes strict quality control during the production process to ensure stable performance and high reliability. Whether in a hospital ward or a home healthcare environment, it can provide accurate and continuous monitoring data.

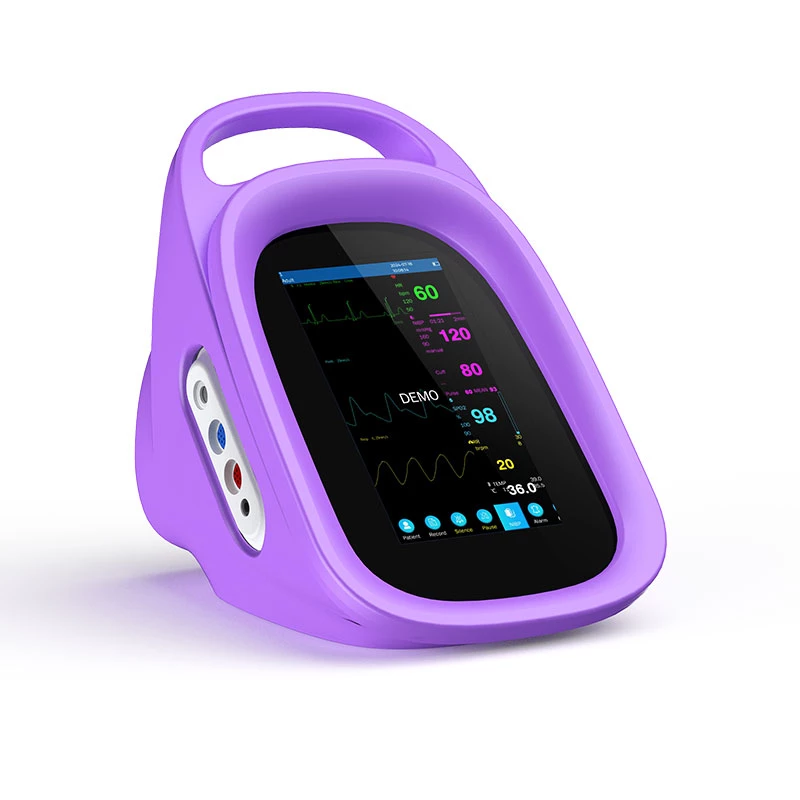

RN5 Vital Signs Monitor

Product advantages

Our advantages

Features:

5.5inch capacitive touch screen with friend UI design
Various interface options through multi-gesture control
Anti-defibrillator, anti-ESU, with Titration function
Application for adult, pediatric and neonate
Advanced blood oxygen technology, anti-motion interference
Smart system with built-in manual

Multiple configurations to choose:

WS 5P: SPO2+NIBP+ECG+TEMP
WS 5: SPO2+NIBP+TEMP
WS 5ST: SPO2+TEMP
WS 5N: NIBP+TEMP
WS 5S: SPO2
Optional: wifi, wireless printer, Etco2
Remote data transfer available, supporting to IOS/Android system (App)
Rechargeable lion-battery backup time more than 6 hours continuously working
Ultra-thin design, lightweight, type C charging interface

Technology specifications

Product name	RN5
ECG	Lead mode: 3/5 Leads, I, II, III or I, II, III, AVR, AVL, AVF, V;
	Gain: 1/4 file (X0.25) 2.5mm/mV; 1/2 file (X0.50) 5.0mm/mV; 1 file (X1) 10mm/mV; 2 files (X2) 20mm/mV;
	Sweep speed: 6.25mm/s, 12.5mm/s, 25mm/s;
	Baseline Recovery:≤ 3s after defibrillation (Monitor mode), ≤ 1s after defibrillation (Surgery mode);
	Bandwidth: Diagnostic 0.05~100, Monitor 0.5~40Hz, Surgery 1~20Hz;
SpO2	Measurement Range: 0~100%;
	Resolution: 1%;
	Response Modes: Low, Medium, High;
	Accuracy: 70%~100%: 2%<69%: unspecified;
	Support Pitch tone and multi-level volume;
	PI performance: 0.20%;
Heart Rate	Measure range:Adult 15 ~ 300 bpm, Neonatal/Pediatric 15 ~ 350 bpm, Accuracy 1% or 1bpm, whichever is greater, Resolution 1 bpm;
Temperature	Technique: Thermistor probe (2.25K / 10k);
	Measuring and Alarm Range: 0.0 ℃~ 50 ℃;
	Unit: Celsius (℃);
	Resolution: 0.1℃or 1℉;
	Accuracy: ±0.1℃(exclusive probe)
NIBP	Method: Pulse wave oscillation method;
	Measure mode: Manual, Auto, Continue;
	Measure interval in auto mode:1,2,3,4,5,10,15,30,60,90,120,180,240,480 min;
	STAT mode cycle time: Keep 5 minutes;
	Adult Mode: SYS 40 ~ 280mmHg, DIA 10 ~ 220mmHg-M, EAN 20 ~ 240mmHg;
	Pediatric Mod: SYS 40 ~ 220mmHg, DIA 10 ~ 160mmHg, MEAN 20 ~ 170mmHg,Static pressure range: 0～300mmHg,Static pressure accuracy: 3mmHg;
	Accuracy: Maximum Mean error 5mmHg;
	Maximum Standard deviation: 8mmHg;
	Static pressure accuracy: ±3mmHg;
	Resolution: 1mmHg;
	Accuracy: Maximum Mean error ±5mmHg, Maximum Standard deviation ≤8mmHg;
	Overpressure Protection: Adult - 300mmHg, Pediatric - 240mmHg;

Usage scenario

RN5 Vital Signs Monitor

Hospital Wards

In hospital wards, the RN5 Vital Sign Monitor is used to continuously monitor patients' vital signs such as electrocardiogram (ECG), blood pressure, blood oxygen, respiration, pulse, and body temperature. The accurate and real-time data it provides helps medical staff to promptly detect any changes in patient's conditions and make timely treatment decisions. It also supports seamless connection to the hospital information system, facilitating the integration and management of patient data within the hospital.

RN5 Vital Signs Monitor

Treatment Testing

For general patient treatment testing, the RN5 vital signs monitor is a convenient choice. It can monitor the patient's health anytime and anywhere. With features such as advanced blood oxygen technology, it can even be used at home, and can perform respiratory measurement through the pulse wave method to save consumable accessories, it provides a cost-effective and user-friendly solution. The IoT information transmission function allows healthcare providers to conduct remote monitoring, ensuring that patients can still receive professional healthcare guidance in various scenarios.

RN5 Vital Signs Monitor

Emergency Rescue

During emergency rescue situations, the RN5 Vital Sign Monitor can be quickly deployed. Its high performance and reliable monitoring capabilities are crucial. For example, in ambulances or at the scene of accidents, it can rapidly measure and display patients' key physiological parameters. The wireless connectivity feature allows for easy transfer of the monitored data to the receiving hospital in advance so that the hospital can make better preparations for treatment.

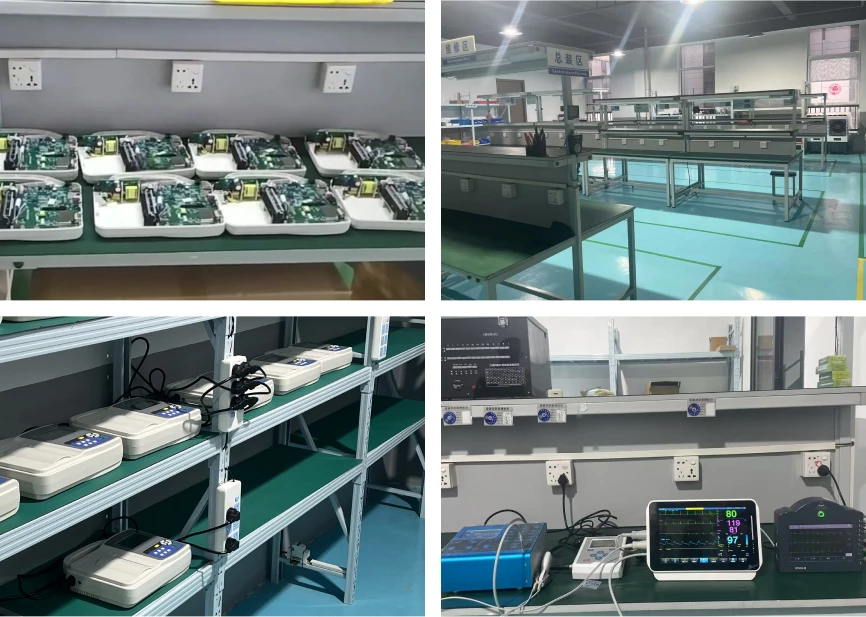

Professional manufacturer

Wuhan Uryn Medical Technology Co., LTD., is a collection of R&D, production, and sales of patient monitor, remoting patient monitor, vital sign monitor, handheld pulse oximeter, electrocardiogram machines. We are also provide SKD and OEM service. we are the main body of the high-tech professional technology company.

RN5 Vital Signs Monitor manufacturer

Our certificates

Our Cooperative Customers

RN5 Vital Signs Monitor manufacturer

Frequently asked questions

Q1.Can the RN5 series vital sign monitor connect a printer?

A:Yes, it can connect with you a printer wirelessly. The machine has WIFI function and can connect to a wireless printer to realize printing function.

Q2.How long can the RN5 series vital sign monitor be used after it is fully charged?

A:The RN5 series vital sign monitor can support more than 4 hours of continuously use and can meet the needs of surgery.

Q3.What are the parameters of the RN5 series vital sign monitor?

A:Multiple configurations to choose: 3/5-lead ECG, RESP, SpO2, NIBP, PR, TEMP, touch screen and WIFI function.

Q4.Does the RN5 series vital sign monitor support data transmission?

A:Yes,the RN5 series vital sign monitor supports remote data transmission, compatible with IOS/Android systems (APP).

Q5.Do you have a product manual of the RN5 series vital sign monitor?

A:The smart system contains built-in instructions for electronic manuals.
